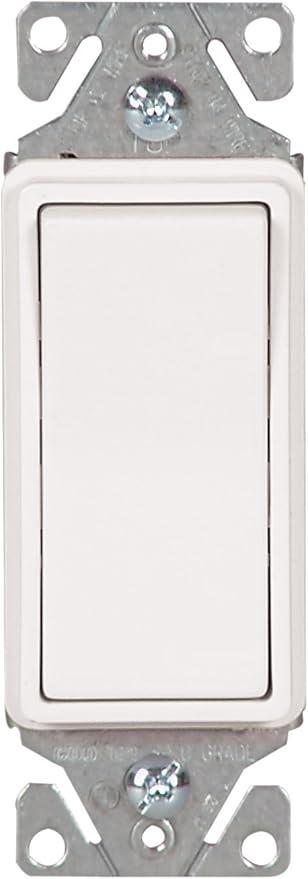

The C7511W-SP-L is a premium single-pole decorator switch with built-in illumination, designed for both residential and commercial applications. This model includes a matching wall plate for a complete, ready-to-install solution. Its sleek design, durable construction, and illuminated feature make it ideal for modern interiors and practical use in low-light environments. This single-pole decorator switch is rated for 15A at 120/277 VAC, making it suitable for a wide range of lighting and electrical loads. The built-in light indicator helps you locate the switch easily when the room is dark, adding convenience and safety.

Key Features

• Illuminated in Off Position: Built-in light for easy visibility in dark rooms.
• Complete Kit: Includes matching wall plate for a polished, finished look.
• Modern Decorator Design: Sleek, low-profile rocker complements contemporary décor.
• Commercial-Grade Durability: High-impact thermoplastic body and actuator with ultrasonic-welded construction.
• Quiet Operation: Cam-action mechanism ensures smooth, silent switching.
• Automatic Grounding: Integrated grounding system with stippled ground screw for safety.
• Flexible Wiring Options:
  • Back-wire clamps for #12–#14 AWG solid and stranded wires
  • Push-in terminals for quick #14 AWG connections
  • Side-wire screw terminals for versatility
• Built-In Wire Stripper: Speeds installation for #12 and #14 AWG wires.
• Tri-Combo Screws: Accept slotted, Phillips, and Robertson screwdrivers for easy mounting.
• Long, Broad Strap: Reduces floating during installation for a secure fit.

Specifications

• Model: C7511W-SP-L
• Type: Single-Pole Decorator Rocker Switch with Illumination and Wall Plate
• Rating: 15A, 120/277 VAC
• Color: White
• Material: Thermoplastic body; zinc-plated steel strap
• Grounding: Automatic grounding feature
• Wire Compatibility: #14–12 AWG solid or stranded
• Operating Temperature: –20°C to +60°C
• Certifications: UL Listed, cULus Listed, RoHS compliant
• Dimensions: Switch approx. 4.19″ H × 1.44″ W × 0.97″ D; standard wall plate included

Applications

• Residential: Bedrooms, hallways, kitchens, bathrooms
• Commercial: Offices, retail spaces, hospitality environments
• Ideal For: Areas requiring a stylish, durable switch with illumination for convenience and a matching wall plate for a finished look
• Compatible With: Standard decorator wall boxes
