RN2-T5635-0BW COMBO 15A DUPLEX OUTLET C & C USB

PART 262842
SUPPLIER LEVITON MFG CO
SUPPLIER PART # RN2-T5635-0BW
RANK E
SHELF PACK 3
Calculating price...
QUANTITY

About this item

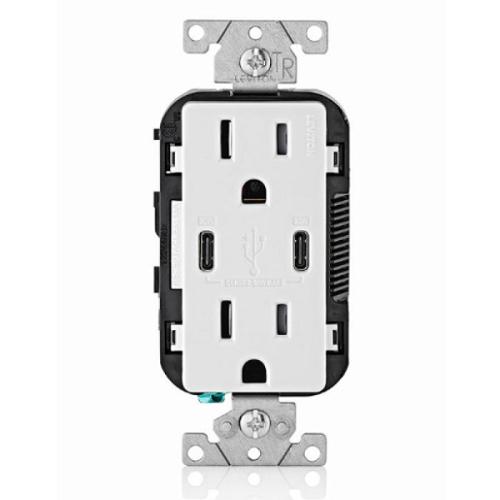

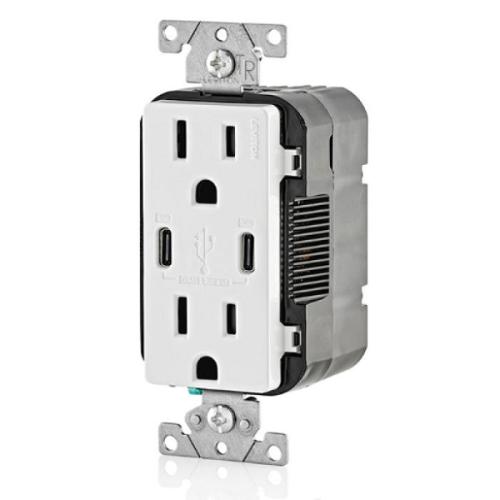

Leviton T5635‑RN2‑0BW — 15A Combo Duplex Outlet with Dual USB‑C + Power Delivery:

The T5635 product family is Leviton’s most advanced USB‑charging outlet series, featuring dual USB‑C ports, each capable of Power Delivery (PD) fast‑charging. This model combines a standard 15A tamper‑resistant duplex outlet with high‑speed USB‑C charging in a single Decora‑style device.

Key Features

  • Dual USB‑C Power Delivery (PD) ports, offering up to 30W of charging power on a single port.
  • Fast charging—up to 2× faster on PD‑enabled devices such as phones, tablets, and laptops.
  • Smart chip technology optimizes charging based on device requirements.
  • Overcurrent and thermal protection built in for safer charging.
  • Tamper‑resistant duplex outlet (TR) for added safety.
  • Adapter‑free charging—eliminates the need for USB power blocks and keeps AC outlets free.

Specifications

  • Amperage: 15A
  • Voltage: 125V
  • USB Output: Up to 30W / 6A total, single‑port PD power
  • Receptacle Type: Duplex, NEMA 5‑15R
  • Wiring: Side‑wired & back‑wired
  • Grounding: Grounding receptacle
  • Construction: Thermoplastic body & cover with steel strap
  • Operating Temperature: -10°C to 40°C
  • Color: White (BW designation)

Applications

Suitable for any installation requiring fast charging and modern convenience:

  • Home Offices, Kitchens & Bedrooms
    Perfect for charging laptops, tablets, and phones without bulky adapters.

  • Commercial Spaces
    Offices, conference rooms, and co‑working areas benefit from integrated PD support.

  • Hospitality & Retail
    Hotels, cafes, and public charging areas gain modern, fast‑charging capability.

There are currently no resources for this product.

Brand Leviton Mfg
Color White
Manufacturer Leviton
Model Number RN2-T5635-0BW
Product Type Duplex Receptacle with Dual USB-C Charger
Color White
Voltage Rating 125 V
Current Rating 15 A
USB Configuration Dual USB Type C
USB Power Delivery Power Delivery
Total USB Power 30 W
Receptacle Type Decora Duplex
NEMA Configuration 5-15R
Pole Wire Configuration 2 Pole 3 Wire
Grounding Grounded
Tamper Resistant Yes
Material Thermoplastic
Mounting Type In Wall
Wiring Method Side and Back Wire
Standards Compliance UL Listed CSA Certified
Country Of Origin Mexico
Package Contents Duplex receptacle with USB charger, mounting screws, instructions
Items Included In Package 1
Overall Width 1.73 in
Overall Height 4.04 in
Overall Depth 1.76 in
UPC Code 078477978573
Shelf Pack 3
Minimum Order Qty 1
